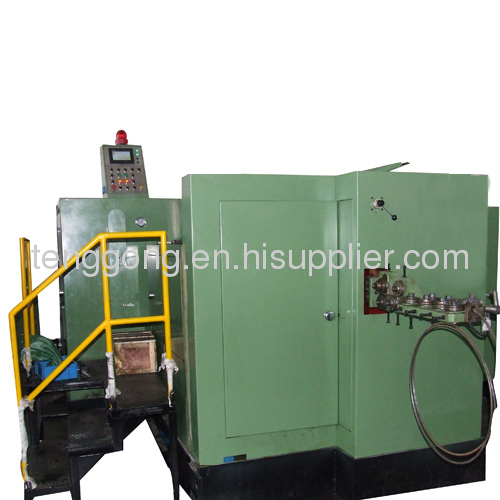

Enlarge Multi-station cold forming machine

Multi-station cold forming machine

Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: TGBF-104S
Production Capacity: 30sets/ month
Delivery Date: 30days after deposit
Raw Material: Steel Bar
Extra Services: Piercing & Punching
Certification: ISO 9001:2000
Brand Name: Tenggong
Means of Transport: Ocean
Packing: depend on buyer
Power: Cnc
Machine Type: Roll Forming Machine
Automation: Automatic
Material / Metal Processed: Stainless Steel
Color: According to Customer's Req...

1. 4 forging station
2. Max cut-off dia.: 12mm
3. Normal Bolt size: 6-10mm

Multi-station cold forming machine, 4-Station Bolt Forming Machine TGBF-104S



Main Features of Multi-station cold forming machine, 4-Station Bolt Forming Machine TGBF-104S:
1.Models apply air clutch brake with small starting current, allowing operation modes of "Inching", "Single Stroke" and "Continuous Running". The main sliding table can automatically stop at its rear position while operated under "Single Stroke" and "Continuous Running" modes, so as to obtain maximum space for adjustment.

2. Enclosure cutting off die and knife deliver a clear and perfect cross section of blank for forming.

3. The cut off roller is designed at the center of the cut off rod to avoid eccentric force occurred on the roller pin, so as to obtain high efficiency and stability of the cutting mechanism.

4. Front knock-out (P.K.O.) actions coincide with back action of main sliding table, allowing the forged parts temporarily stay in the forming die, instead of being taken away by the punch.

5. The machine main parts such as the bench, main sliding table etc has been treated for removing the residue stress after casting to avoid any deformation and keep stable precision of the machine in long term.

Specification of Multi-station cold forming machine, 4-Station Bolt Forming Machine TGBF-104S
No. SpecificationsUnitTGBF-104S
1Forging stationNo.4
2Forging forceKgs85,000
3Max cut-off dia.mmΦ12
4Max cut-off Lengthmm133
5Speed Rangepcs/min95-160
6P.K.O Strokemm20
7K.O. Strokemm110
8Main Slide Strokemm190
9Main motorkw30
10Cut-off-die sizemmΦ45*59L
11Punch die sizemmΦ53*115L
12Main die sizemmΦ75*135L
13Die pitchmm94
14Machine Weight(Approx)kgs18,000
15Normal bolt sizemm6-10
16Shank length of blankmm15-100
