Product Detail

Model No.: TGBF-133S

Production Capacity: 30sets/ month

Delivery Date: 30days after deposit

Raw Material: Steel Bar

Extra Services: Piercing & Punching

Certification: ISO 9001:2000

Brand Name: Tenggong

Means of Transport: Ocean

Packing: depend on buyer

Power: Cnc

Machine Type: Roll Forming Machine

Automation: Automatic

Material / Metal Processed: Stainless Steel

Color: According to Customer's Req...

1.It works safe and reliable.
2.It has the high precision
3.Have CE certification

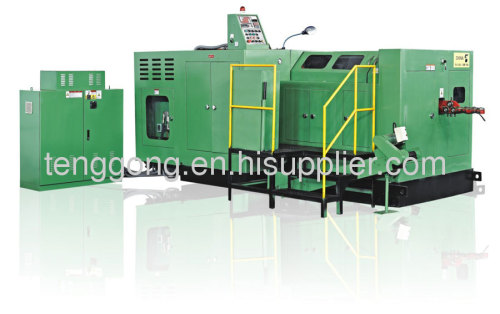

Specification of High speed nail making and forging machine, Nail cold forging machines
1. Fast and effective heating station
2. Multi-Steps heating

Specifications	Unit	TGBF-133S
Forging station	No.	3
Forging force	Kgs	120,000
Max cut-off dia.	mm	φ15
Max cut-off length	mm	145
Speed Range	pcs/min	100-160
P.K.O Stroke	mm	26
K.O Stroke	mm	102
Main Slide Stroke	mm	200
Main motor power	kw	30
Cut-off-die size	mm	φ63*69L
Punch die size	mm	φ60*130L
Main die size	mm	φ86*135L
Die pitch	mm	98
Machine Weight(Approx)	kgs	19,500
Normal bolt size	mm	8-12.7
Shank length of blank	mm	20-100

1.It works safe and reliable.
2.It has the high precision
3.Have CE certification

Reversible nuts and fixed bolt clips that match with TGBF serial multi-station parts forming machine.

Transfer conveyance of rotary swing mode and transfer force of adjustable pneumatic mode ensures stable and reliable work-piece conveyance and high speed operation of the machine. The first station clip can automatically loose short dimension feeding, stop and alarm.

Reciprocating movement of clipping table and opening/closing actions of the clip are both driven by a joint intermediate shaft to ensure the coordinated actions.

Features of High speed nail making and forging machine, Nail cold forging machines, Nail cold forging machines:

1.The processing of the parallel thread adopts sold rolling technology . The rebar head has no false thread.

2.The thread size is precise.

3.It works safe and reliable.It can works all day long,and can save steel and energy.

4.More reinforcement, stable and reliable quality .
5.Operation is easy and simple to save the construction time.

Fig.04 is rear knock-out mechanisms. Rear knock-out mechanism of various stations can respectively and independently adjusted. Last station can fulfill edge-cutting or knock-out actions through adjusting or changing cam. Before being kicked out, dead-point position of all models keeps the same. Some models can choose to hand-wheel type or CNC type rear knock-out threaded pipe adjusting mechanism.

Fig.05 is punch knock-out mechanism of TGBF serial model.. Punch knock-out coincides with back action of machine slider. After the work-piece is shaped, it stays in the mould and then being kicked out by rear knock-out mechanism. It avoids being taken away by the punch and then get deformed. Various stations of front knock-out positions can be independently adjusted. All the front lead-out mechanisms have knock-out force over-load protection devices.

Fig.06 is electric feeding mechanisms. In return stroke, pawl can be automatically raised by air cylinder and be separated form ratchet wheel. It not only removes friction and noise, but also prevents ratchet wheel from reversal operation.
